[Dwane]

Slowly getting there

Hi buddy,

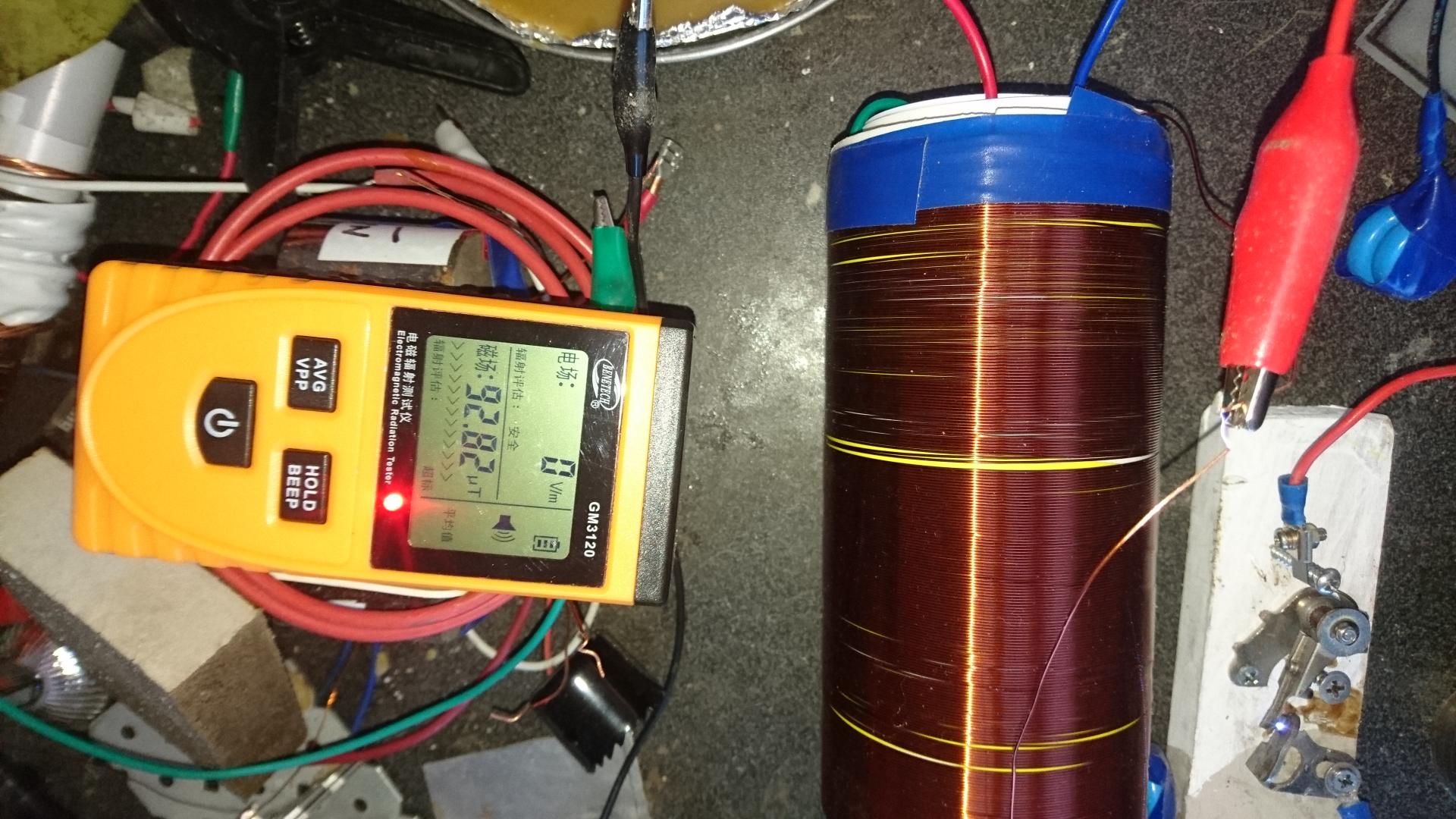

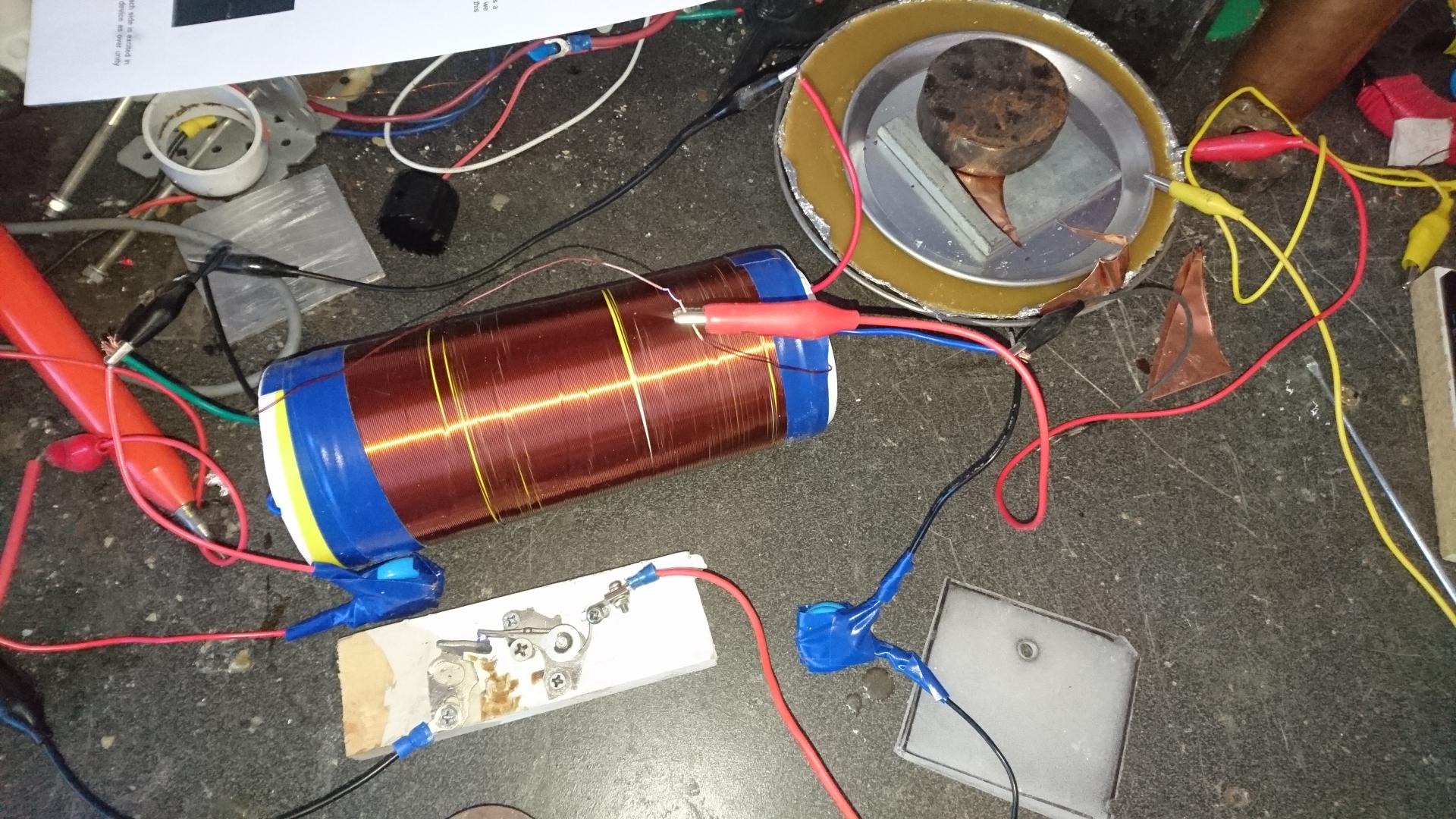

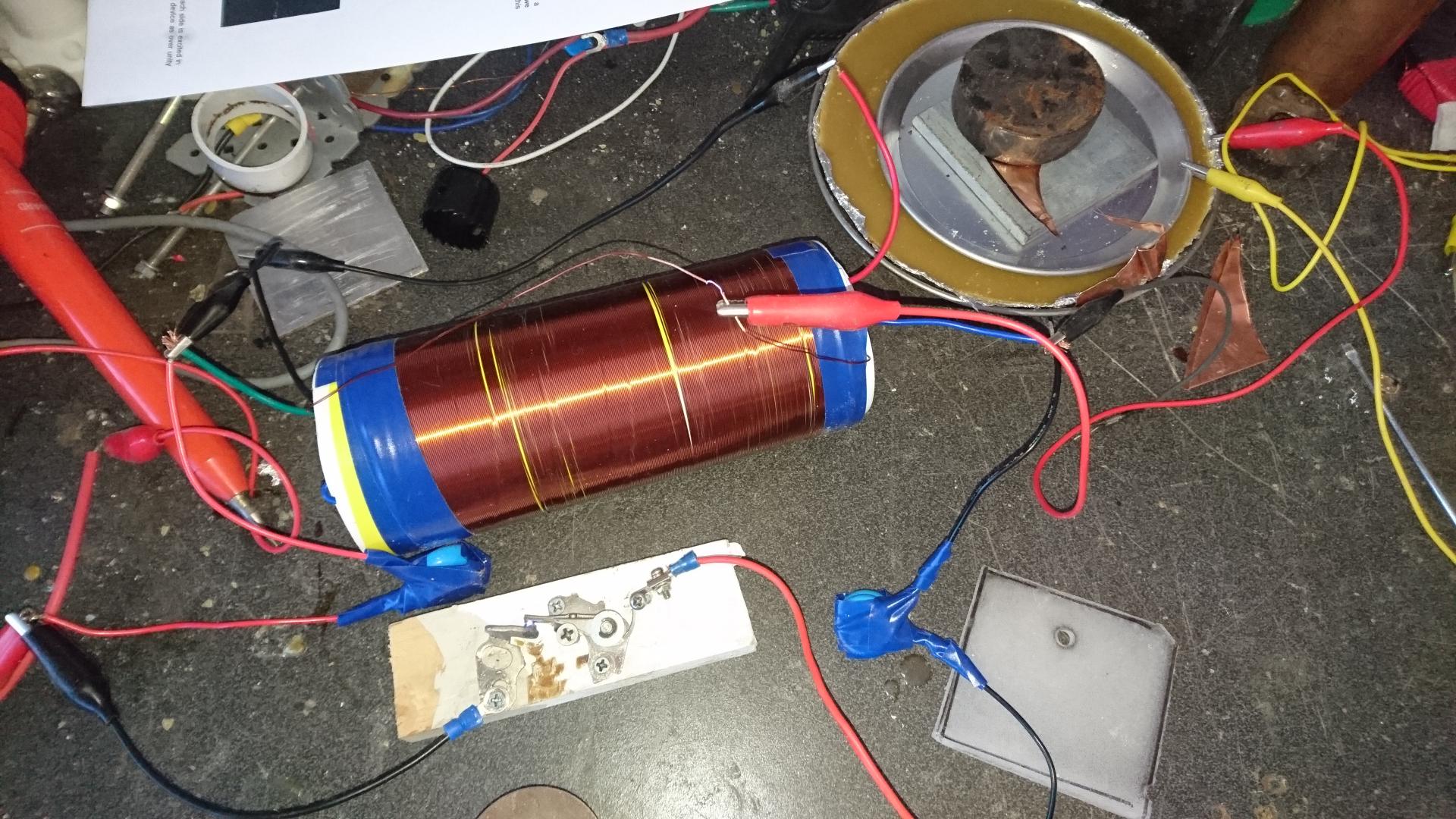

Here are some more photos of my progress! Big issue I see is the stable pulsing of the ETBC. I am using the Mazzilli at the moment as it is available. Even though I have the close reasonant frequency for ETBC, Mazzilli drifts too much either side of Resonance. Anyway, slow and steady! Still, getting 90+uT output. Next will see if I can use energy!!

Configuration as per the final set up on Mohammed.pdf with the inclusion of Eguchi capacitor. Which does enhance the density of the L2 spark.

Regards

Dwane

[med.3012]

Hello Dwane + everyone )


so sorry for not replying your email, i am planning to do so but very lazy and busy too i also have a new baby , the connection across CD is the same as AB due to symmetry, it's just a reference to external ( AB ) points or internal points (CD) ..
i was looking for replicator in those Arabic Facebook groups but very few or none !!!

in my opinion the phylosophy to a successfull replication of Don smith device is energy balance !! why he adviced to use the Tesla flat coil ? because the formation of magnetic field in this coil is balanced even in AC current .. the wire turn in the same plane so the magnetic field keep balanced ..

using the same phylosophy we need to use a closed CD connection..not to break the magnetic portion !

when we use an extended wire to form the ETBC we enhance the process much more because the electrons can shift to the other side which bypass lenz law completelly !!!

take the following drawing as a new expiriment you can do :



the blue ABCD is the primary coil , the black ABCD is the secondary coil, the wire lenght is 4 time more in the sencondary , power your primary coil measure the power consumption and the frequency while the secondary is open , now close the secondary coil through AB measure the power consumtion ? you see no consumption !!!! measure the frequency you see it's much more lower !!! i did some expiriment and the frequency get lower from 700 KHZ to around 100 KHZ in such resonance system when you load the seconday the frequency have to raise to push more power .. it also mean the inductance of primary coil is loaded so it lost the magnetic field which lead to frequency drift to higher value as you lost some inductance when combined to the same capacitor the frequency is higher ..

in our case the frequency is lower !!!!!!! the two ETBC together can bypass lenz law very easilly since the electron can move bacause we use a conducting foil ... the secondary coil don't take the magnetic field from the primary but added to it !!! i did this test more than 3 times just to be sure and it is :-)

now to take the power keep the two ETBC working together extracting the energy from the ambient and added a third coil to harvest what's going on ... still not tested .....

lenz's law simply make an opposite magnetic field that lead to power consumption, using Tesla thinking plus this treak we can use this law to help us !!
in my opinion this is the correct path we have to work in


regards

[Dwane]

Hi Med,
Sometimes a brief sojourn can focus the attention.

I will follow your instructions and rebuild my ETBC. The current ETBC certainly generates energy. I just need to clear up a couple of points. My ETBC doing the 2F=2*((1/ pi* sq root LC ) gives me 60.7khz for resonant frequency. I can get close to this through mazzilli at 9kv! This indicates to me that ETBC is frequency dependent upon voltage input?And, the wave is quite stable. Have not been able to adjust ETBC frequency using capacitor. Also, I am blowing up 20kv ceramic caps too much with heat. I am using the configuration for entry to ETBC via caps at either node. Also, I have wound two coils one straight coil the other CW and CCW with centre earth connection. I am getting very little actual energy transfer, which is likely poor ratio coupling. It is difficult to measure ETBC! If I use low voltage pulse, I get the impression that ETBC thinks it is bedtime! Low voltage is sending it to sleep.

I have located some polypropylene sheet locally. .32mm thickness which is giving me good ETBC response. No punch through. And cheap $5 a sheet.


I am mindful that Don used the negative going pulse extensively, and I cannot quite see how the ETBC fits into the Don Smith Paradigm. What I am seeing is a developed bifilar coil that generates a massive amount of internal energy. Perhaps, I should make larger ETBC and fit an energy sucking coil internally? First, though I must reconcile the resonating of the ETBC, I am sure when I get that, a lot of other variables will fall into place!

Regards

Dwane

[med.3012]

Hello Dwane,

OK you can finish all the experiments you want at the same time i will post the new method plus some explanation drawing .. i did some test using higher voltage and lower voltage i think the performance will vary but ambient energy can be extracted in both cases .. if we use only two coil we lost the peak energy point very soon ... if we use 3 coil we are in optimal situation all the time .. until new post take care .


regards

[Dwane]

Hi Med,
I am only thinking of myself! Congratulations on your baby!

Yes I will look at the two coils primary and secondary. it might be easier to tune if using the 4:1 ratio using same materials. Like the Tesla coil, I shall make one bigger and one smaller! How to tweak the foil? Hmm...

Big anticipation with patience! Regards

Dwane

[med.3012]

Hello Dwane !

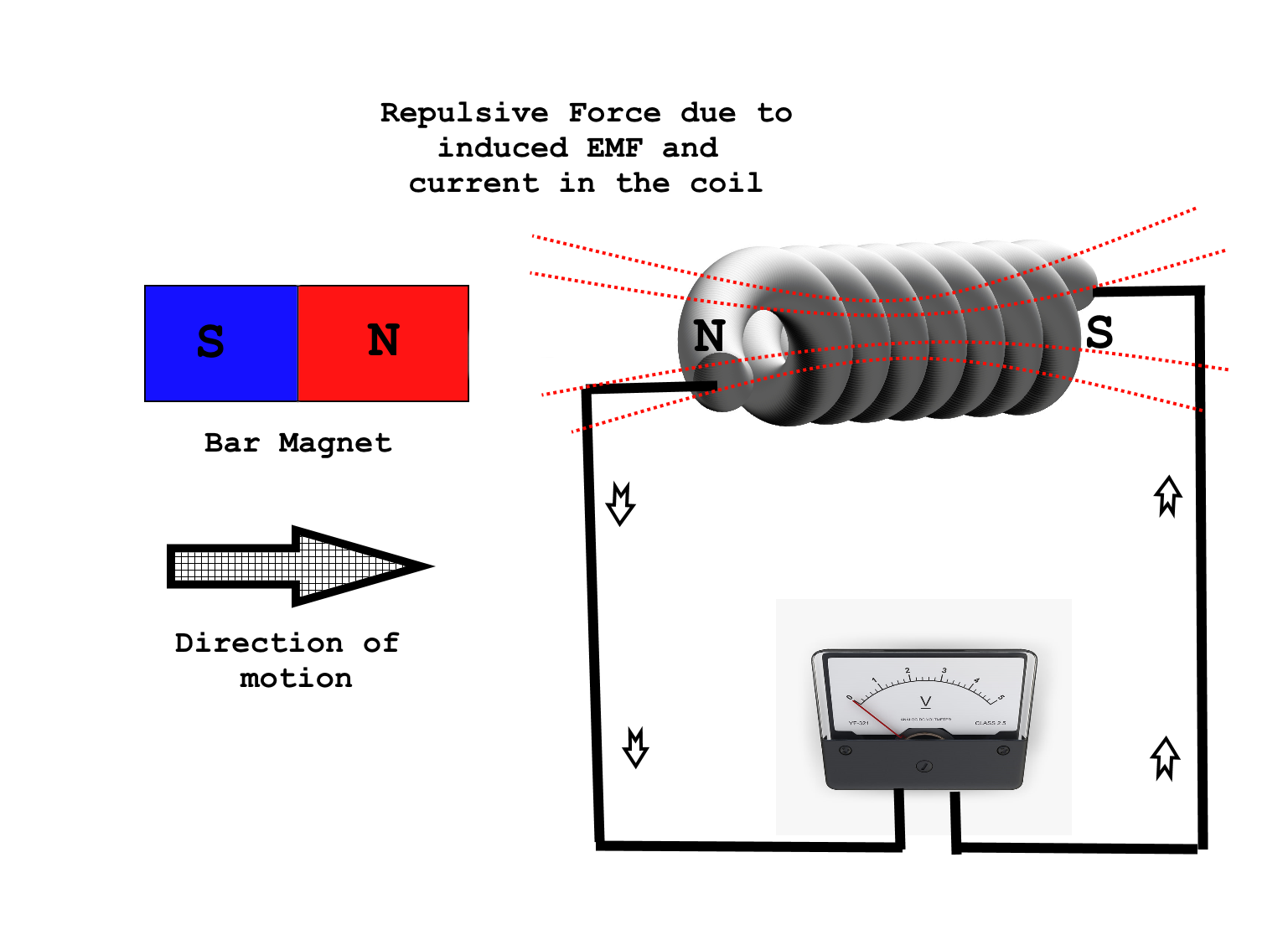

i prepared two drawing for you ,the first explain Lenz's law physically





the bar magnet is the primary coil , the coil is the secondary , when we induce an EMF in the secondary by feeding the primary the magnetic field in the secondary coil oppose the primary field which lower the apparent inductance , this lead to frequency to increase ..

the problem in the above drawing is the section of the cable !!! the electron can't move to bypass this situation ..

[med.3012]

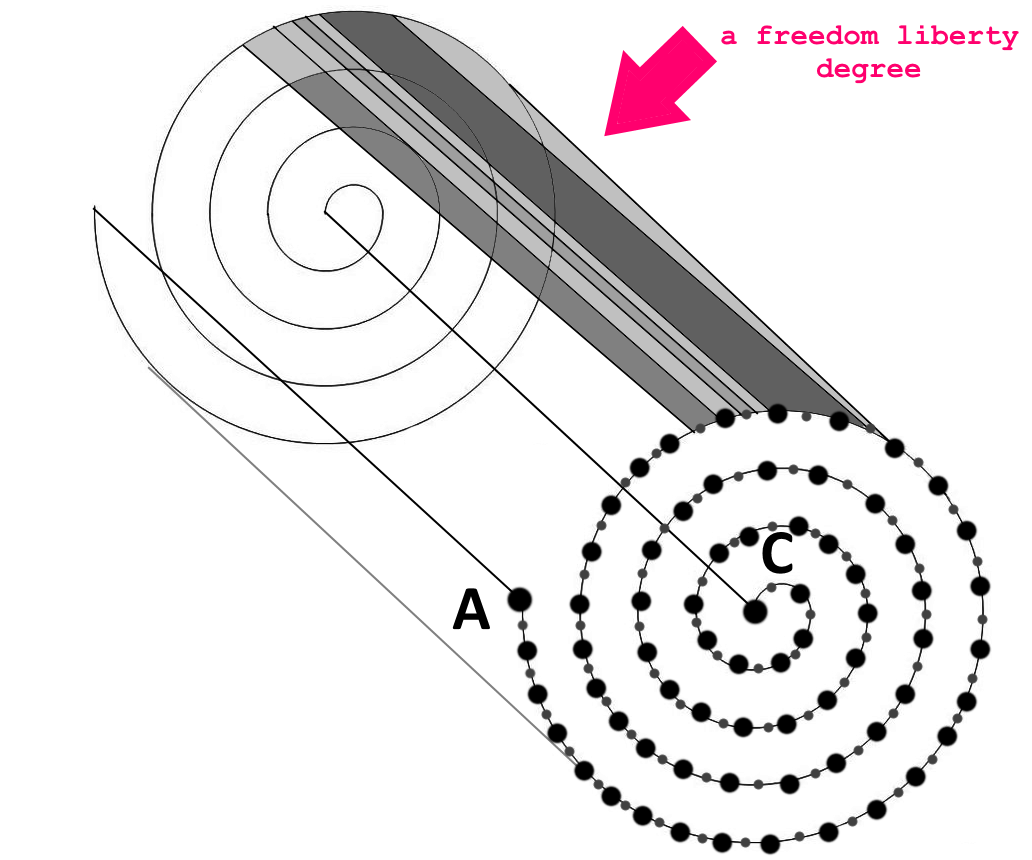

now it's the time to show what the ETBC CAN DO FOR US ? the following drawing show a half ETBC the connection from A to C , this coil is nothing than a Tesla flat coil :






the magic is the freedom liberty degree where the electron can shift so the north pole find a south pole not like our ordinary Lenz's confined system where the north oppose the north !!!!

here you are the evidence from Don smith resonance energy crafting 1994 !





he show the magnetic inductance in his system to oppose Len's law !! no repulsion but attraction !! when we added a magnetic material to this phenomena the received ambient energy will be very high because of magnetic field optimization .. few turn can lead to high inductance due to magnetic material , in this case negative resistance will be enhanced ..

the easy way to extract energy is to introduce a third coil tuned to that frequency , maybe we can use a kind of bucking coil ..


NB : anyone read this info please share it to other place and ask your question to expand the discussion



regards

[Dwane]

Hi Med,
Tanks for the update.

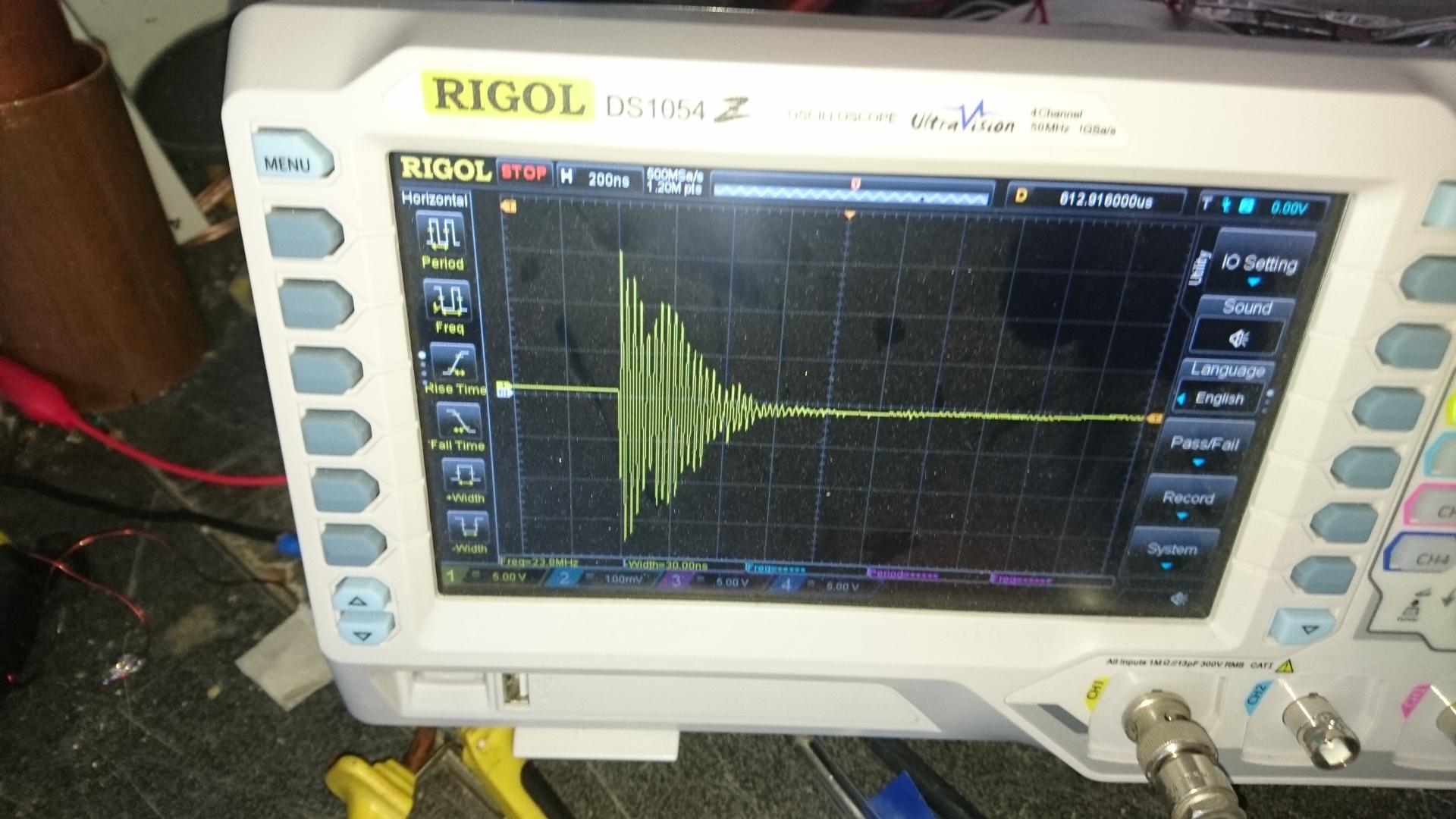

I have wound a L1 and L2 ETBC. My L1 is 300mm long and gives me just over one complete coil turn around the L2 ETBC. It is hard to know what I am looking at, and measuring the frequency. On the scope i see lots of jumbled up frequencies. There is one point on the inside of the L2 coil where I get stable signal. I have a wound Bucking coil which collects the output from L2 when nearby - with or without connection as third coil and shows me different frequencies along the coil! Best frequency stability is when only using one section of bucking coil with centre connection disconnected and this is at the end of the coil. 1MHz.

This gets a bit confusing trying to determine when I am doing the correct thing. I understand the notion of Tesla's use of the term preponderate forthe significance of the external coil, but, I cannot resolve the 4:1 ratio at this external coil. Is it wound down to 1/4 of the transmitting L2? or is the L2 the 1/4 preponderated coil? Working this concept out would help with looking for the resonance at the magnifier.

Keeping me awake!

Regards

Dwane

[med.3012]

Test message

[med.3012]

i can't post in energeticforum.com !!!!!

[Dwane]

You already have!

[Dwane]

Hello,

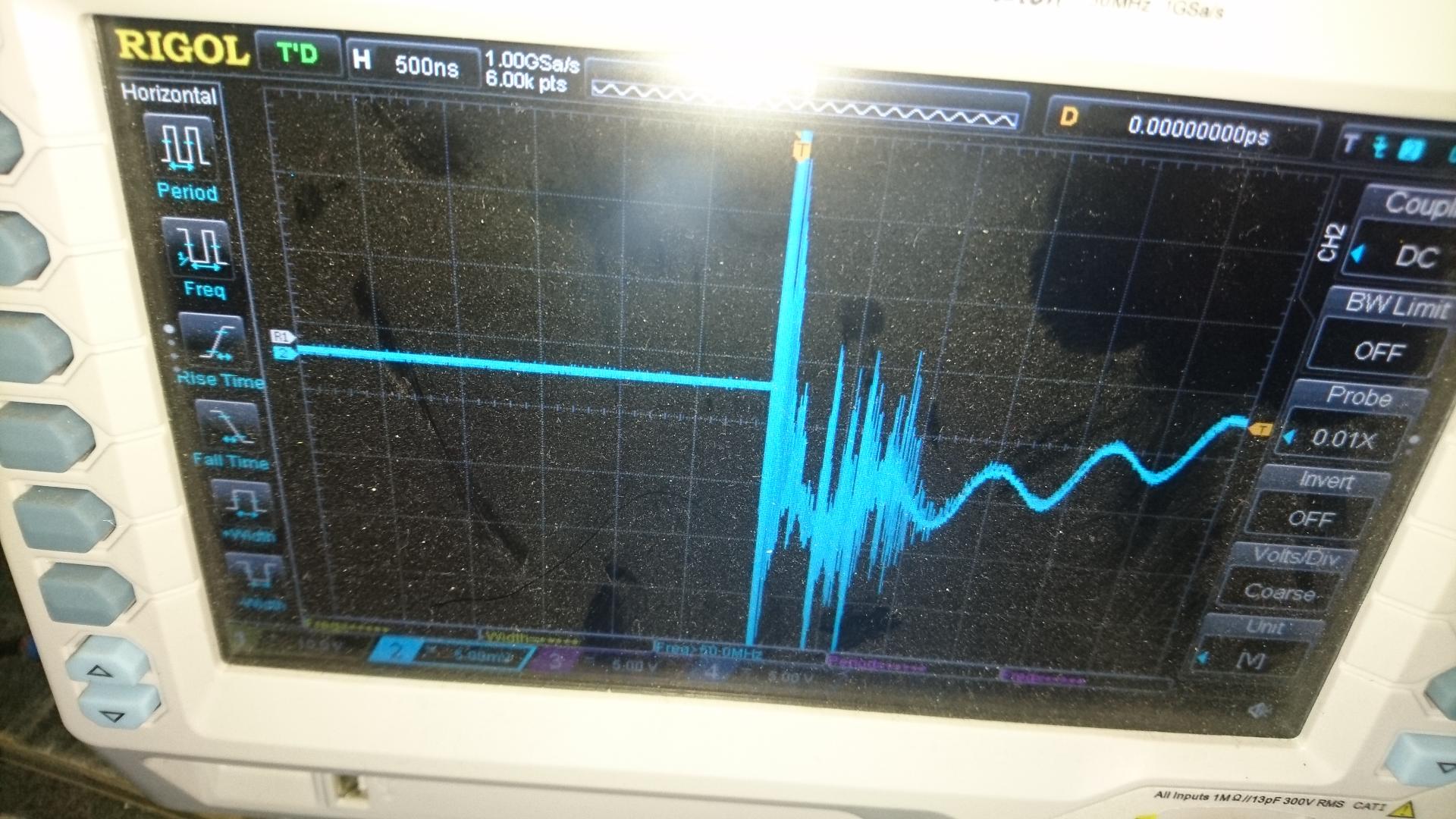

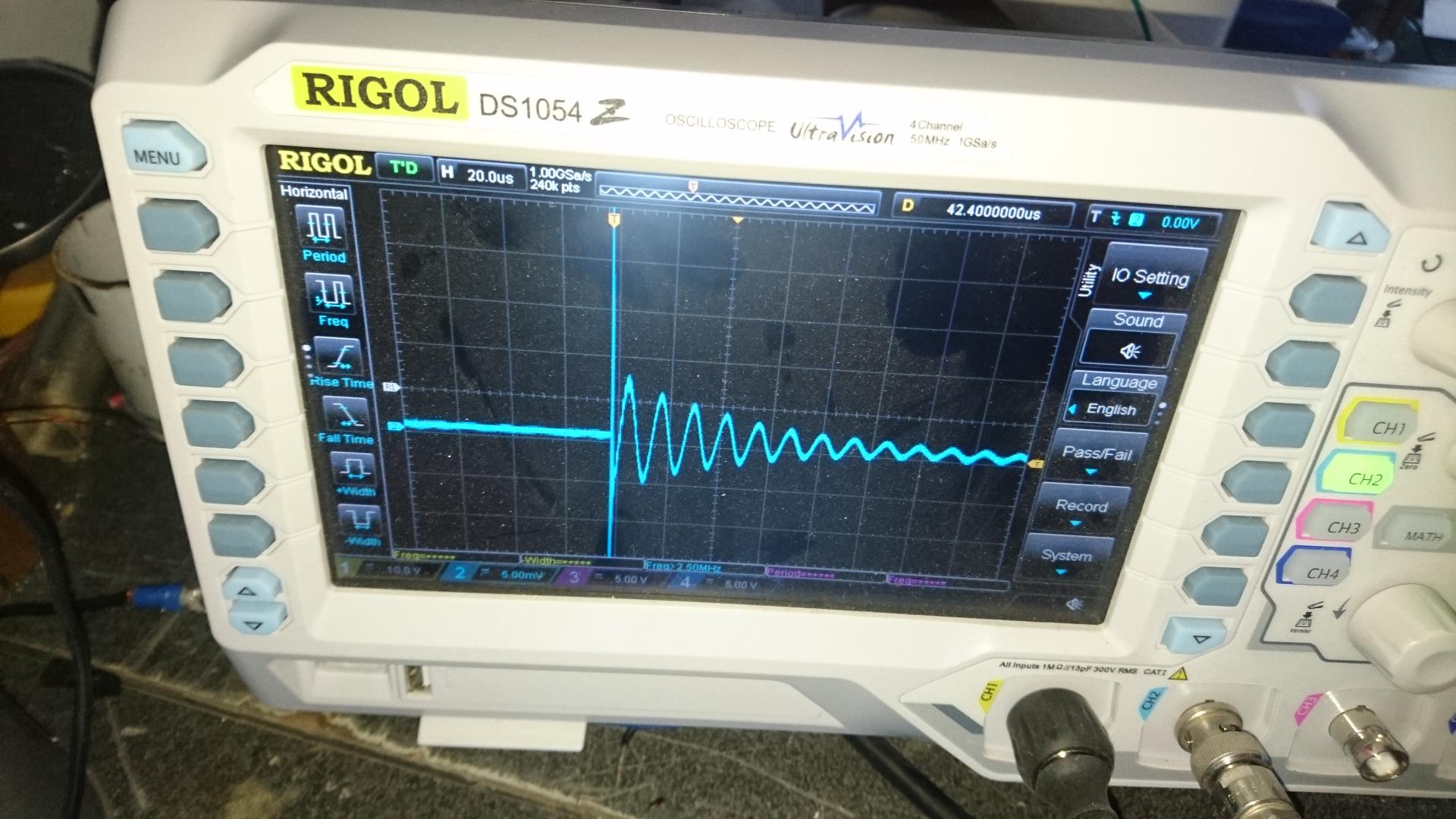

Just a brief note. The previous photos posted regarding frequency are now not achievable! I have spent most of the day trying to reconcile the different output I am now getting. I refer to post #130 by John.K1 and the waveform image there. I am now not getting any oscillating waveform and am unable to confirm the frequency on my scope. I only am getting an inverted waveform as was posted on #130.

This device, defies definition to be so unpredictable at times!

Dwane

[med.3012]

Hello Dwane

i still can't post a reply !!!

[med.3012]

[Dwane]

Hello Med,
You have a problem with your provider!

I have finally worked out the issue with different wave patterns!

Dwane
