The Resonance Energy Device Explained

[Dwane]

@Dwane


sorry for the late reply, the daughter of my aunt passed away today, i will explain the new ETBC very soon in a video at Youtube, i am not able to fully test it but i don't want to loose the time since the idea seem to be very interesting and cover the possibility to bypass Lenz's law , the primary coil will be covered also but i can't guaranty if it's correct , i will also explain the mazilli driver and how it worked for simple replication .


regards

Hi med.3012,

No problem. My condolence on the loss of your niece.

I have been going through some of my notes looking for correlations. I have retrieved my information on the Clemente Figueras device. It might be that there are some similar features with the Radiant production and collecton. Always the issue is the hurdle of the COP! My PVC has not arrived! Maybe Monday. However, as I have seen the operation working before I punched through my
ETBC coils with the NST, I am wondering why I should make a similar wrap. I am looking at some different builds to understand the process better.

The issue I had with the Figueras device was the amount of input to get the 240v ac output. Need some very big solenoids and all in a row duplicated with a centre string just for luck! To get 15Kw it would be "One big Mother F...ker!" With Don, there is the option to mitigate the High voltage high frequency output through successive coil drops, for the required voltage output.

I have enjoyed our ride together. I have been taught a lot! It is unlikely that I shall get to Algiers, so Bon Chance! You have a remarkable insight into the Radiant production and I look forward to the new video.

I shall be very busy for next few months getting the house weather proof and ready for occupancy.

Regards


Dwane

[med.3012]

Hi med.3012,

No problem. My condolence on the loss of your niece.

I have been going through some of my notes looking for correlations. I have retrieved my information on the Clemente Figueras device. It might be that there are some similar features with the Radiant production and collecton. Always the issue is the hurdle of the COP! My PVC has not arrived! Maybe Monday. However, as I have seen the operation working before I punched through my
ETBC coils with the NST, I am wondering why I should make a similar wrap. I am looking at some different builds to understand the process better.

The issue I had with the Figueras device was the amount of input to get the 240v ac output. Need some very big solenoids and all in a row duplicated with a centre string just for luck! To get 15Kw it would be "One big Mother F...ker!" With Don, there is the option to mitigate the High voltage high frequency output through successive coil drops, for the required voltage output.

I have enjoyed our ride together. I have been taught a lot! It is unlikely that I shall get to Algiers, so Bon Chance! You have a remarkable insight into the Radiant production and I look forward to the new video.

I shall be very busy for next few months getting the house weather proof and ready for occupancy.

Regards


Dwane

@Dwane


Thank you for your encouragement , you don't need to make a new ETBC , you just need a crucial modifications, in the case of Mazilli driver you need 6 connections ! i did this for an old ETBC and it worked as shown with Mazilli and a stainless steel tube, 4 connection are needed for the oscillator , the other to take the power and see radiant energy flow in respected quantity in this low voltage environment, in the few last days i opened the electric path inside the stainless steel and tried the test but the light bulb don't work unless a very small bright !!! the magnetic core worked as an obstacle .. i returned the electric path back again and the bulb return to bright

there's another important experiment we can do if we change the stainless steel with any conducting tube ( no magnetic .. ) , in my opinion it's important to secure a right angle magnetic field and this is what the stainless steel did , like you send the power and you need to reflect it so the compacted Tesla wireless transmitter can duplicate the power , send /receive and the ETBC count the power for you across the capacitive induction ! very nice idea that need some drawing and explanation to be fully understood and developed.





regards

[Dwane]

@Dwane


Thank you for your encouragement , you don't need to make a new ETBC , you just need a crucial modifications, in the case of Mazilli driver you need 6 connections ! i did this for an old ETBC and it worked as shown with Mazilli and a stainless steel tube, 4 connection are needed for the oscillator , the other to take the power and see radiant energy flow in respected quantity in this low voltage environment, in the few last days i opened the electric path inside the stainless steel and tried the test but the light bulb don't work unless a very small bright !!! the magnetic core worked as an obstacle .. i returned the electric path back again and the bulb return to bright

there's another important experiment we can do if we change the stainless steel with any conducting tube ( no magnetic .. ) , in my opinion it's important to secure a right angle magnetic field and this is what the stainless steel did , like you send the power and you need to reflect it so the compacted Tesla wireless transmitter can duplicate the power , send /receive and the ETBC count the power for you across the capacitive induction ! very nice idea that need some drawing and explanation to be fully understood and developed.





regards

Hi med.3012,

I must first correct my relations mistake. Condolences to you on the loss of your cousin. Don't know what i was thinking when I put niece.

PVC should arrive today. Will not take long to wrap the ETBC. Have the foil ready! I might take the ac output not pulsed from the ZVS connections to be AD and CB output across DC? Or I could try AC BD output DC? not many other options.

I am studying your thesis again - Mohamed.pdf - with a much keener eye. It is beginning to make a lot more sense now that I have built and charged up an ETBC. The spins are awkward at the moment trying to hold the system in my mind. Practice will make perfect.

Will update when I have run the new coils and something to show.

Regards

Dwane

[Dwane]

Hello Dwane,

........

today i tried another test using solenoid coil oscillator ( Mazilli driver ..) i tired to put the stainless steel but the oscillator stop !!! this is to be expected because the core form a short circuited coil which take a lots of power than the power supply can handle, if i change the power supply the driver should work again as induction heating !! but this is not the case when using the ETBC !

..................

regards !

Hi med,

Just quickly, I do not quite understand what you are saying here! Are you using different power supplies or saying with or without SS core?

I have some 50mm copper tube here! Lucky!

Regards

Dwane

[med.3012]

Hi med,

Just quickly, I do not quite understand what you are saying here! Are you using different power supplies or saying with or without SS core?

I have some 50mm copper tube here! Lucky!

Regards

Dwane

Hi !

it's an experiment to see how the final setup should be ! i guess we can't get a lots of power using 12 V Mazilli oscillator so i tried it using normal coil inside it i have my ETBC with SS core , the power supply is a 12 V old laptop adapter , it's nice since it stop working if there is huge demand on power , it's also good since it protect the Mazilli driver !

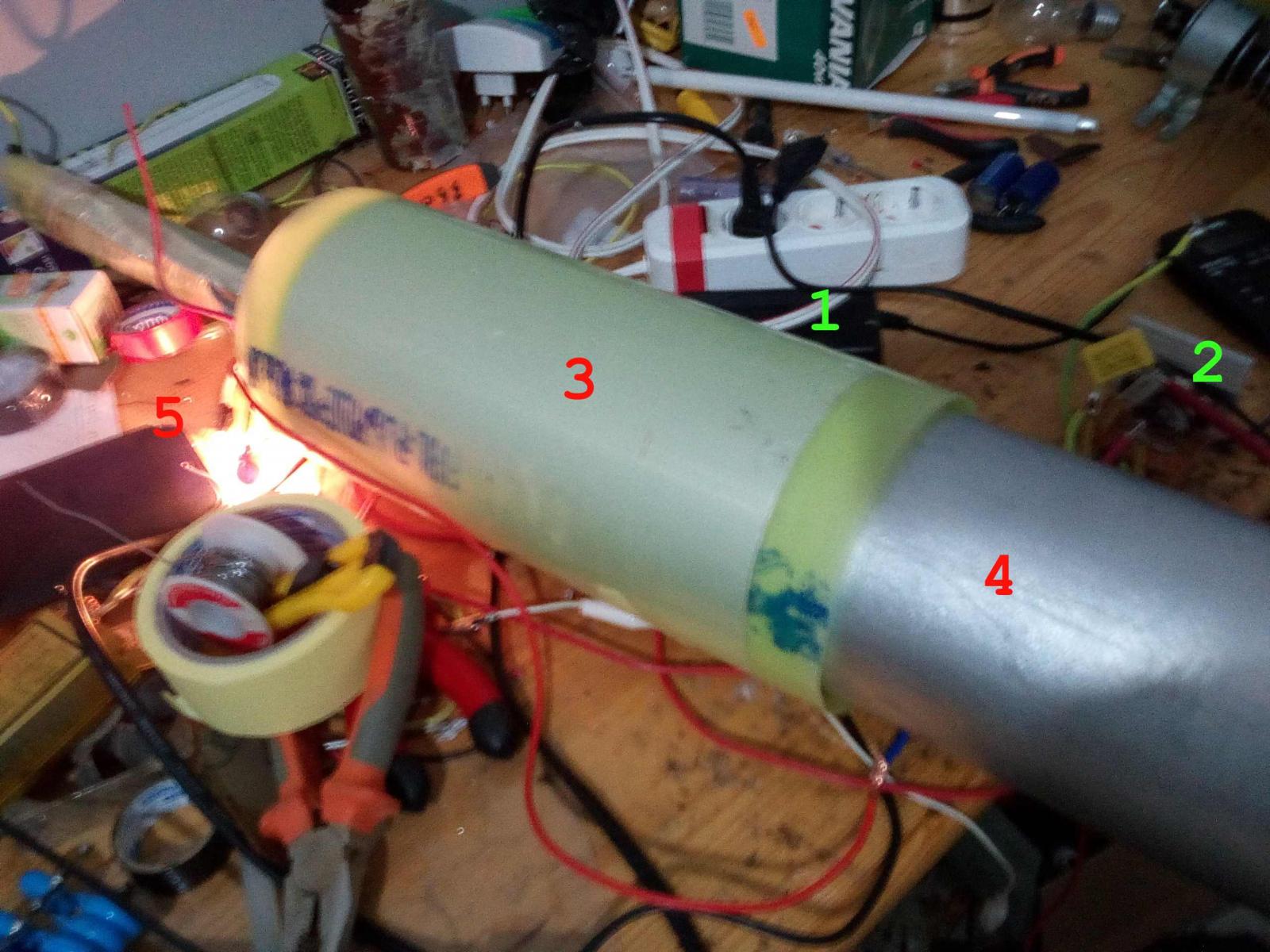

the following photo show the test before i cut the SS tube


EDIT :

1 power supply
2 Mazilli driver
3 ETBC
4 SS TUBE
5 radiant power !


regards

[med.3012]

@Dwane


Hello,


because you are actively working in this technology it's better to share all the available info before making a video tube , i prefer a video to explain all the hidden details but i think you will understand what i will share !

i shall divide my reply into parts since i have to put some drawing , the drawing number 1 :

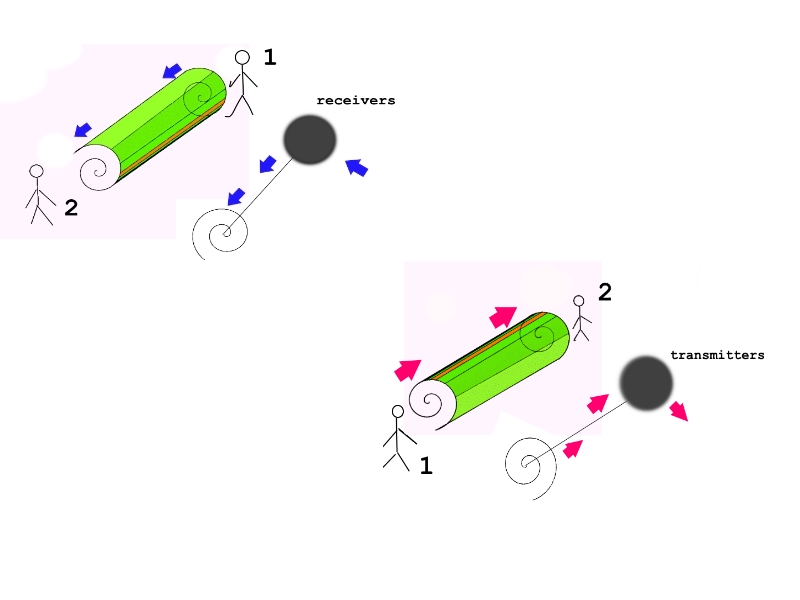

the drawing explain itself because if the observer N1 see the ETM as a transmitter the observer N2 see it as a receiver , as we learned from Mohamed.pdf we are able to compress the Tesla system through one ETM ,

[med.3012]

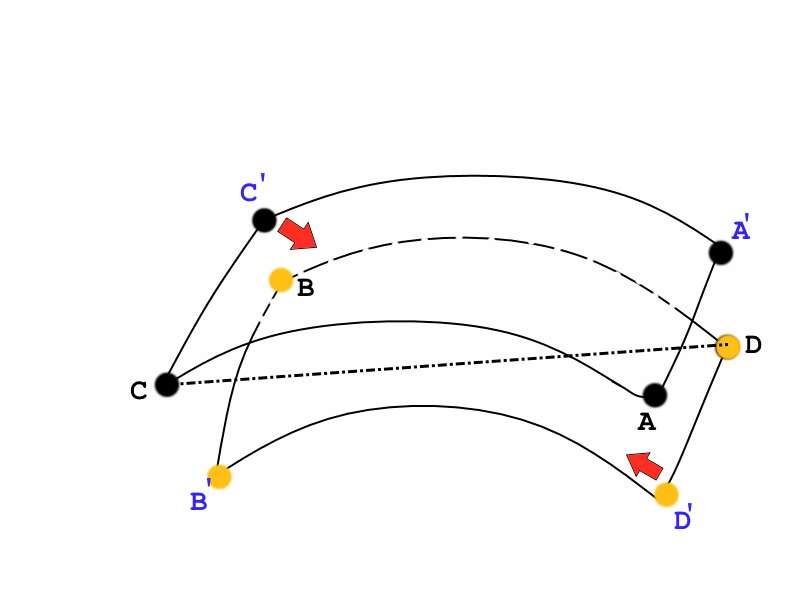

now we need to move further more because we need two ETM to form an ETBC , the drawing N2 show the complexity :




if you want to use Mazilli driver you can connect it from A TO B this is your coil , CD is the one D capacitor and also needed for this driver to work with such geometry ,in the other geometry AB + CD ( slash ) we only need the CD connection ( red arrow !) everything happen in the ETBC we have a duplicate image from this special out put .

[med.3012]

the following is another better drawing :

[med.3012]

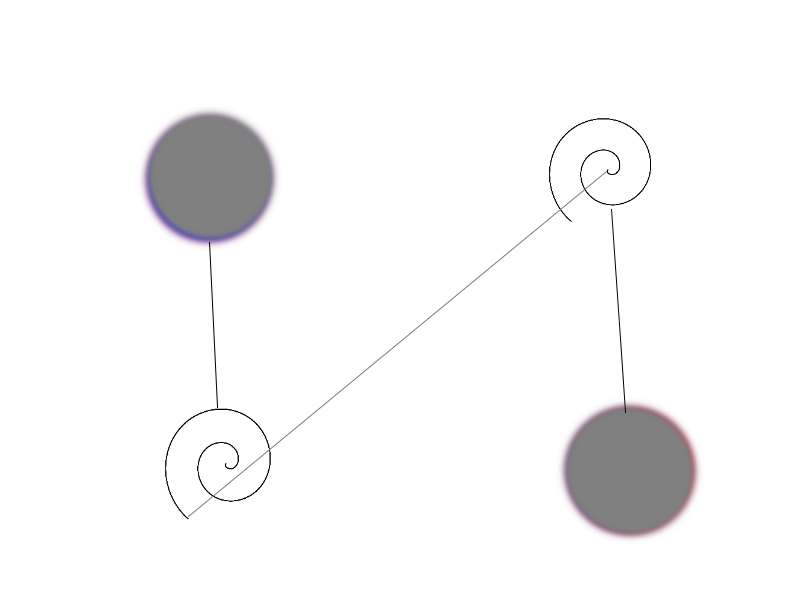

the drawing N4 show how we made the short cut for a Tesla wireless power transmitter :

[med.3012]

when we take the power from the ETBC we don't affect the input because it's interchangeable geometry, this don't apply to Mazilli driver because it's just a demo , the ETBC will work good as antenna , we need a conducting tube to emulate the primary ( first coil ) and the secondary ( last coil that receiver the power ) in Tesla wireless power transmitter because we need both action the two together,

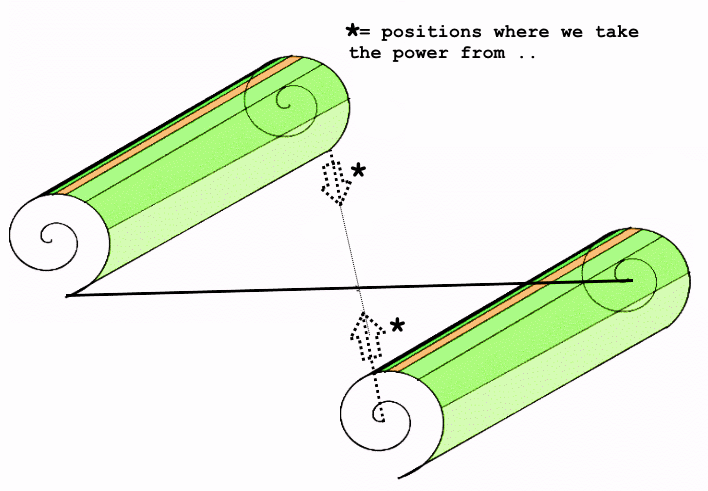

the drawing N5 show how the ETBC is interchangeable .

[Dwane]

Great drawings

Hi med,

Great drawings. I am close to understanding what you have discovered. These will help me with my connections. I actually really get the concept! It is just getting my mind to automatically tell me about the directions and flows that I am working with, without having to constantly keep going back to confirm if I am still on the right track.

It has been very difficult winding my latest wrap. It has taken me the best part of two hours. The only dielectric i could get from a roll was PVC. It is quite soft and stretchy when rolling as in this case with other material between the sheets. The aluminium kept moving too!. It has been impossible to get say polypropelene in a thin sheet which would maybe have been more stable. Which material did you use or was able to get? Anyway, this is the best I could do with the PVC.

Will start the connections and tests tonight. I have wrapped over two output coils CW,CCW, and on a 50mm diameter copper tube as per your recent comment.

Once again, thank you for the drawing update, I hope there are some others out there not missing out on this energy gem!

Regards

Dwane

[Dwane]

Hi med,

Just a quick note. With a single pulse to AB using Mazilli, I get first run, visual experience on scope of ETBC charging up to high pulse! Only happens once for me.Taking output across open terminals CD get approximately 7watts! enough to light up a 240 volt LED globe. Voltage here is 219 volts 30mamps. I have L2 CW and CCW wound under Wrap, zero amplification when connected to CD and then bridge to capacitor. Not sure I understand Image 3 which show closed connection and power terminal: I got no improvement trying this connection. Also tried earth to look for improvement.

Have been trying to run a synchronous alternate power switch to AB BA etc, to see if this improves the output. Unfortunately, mazilli send me message, does not like this routine! Maybe switch routine too fast?

Will fiddle a bit more. Also, look at the scalar wave, although I think I shall need two independent units for that.

Perhaps a larger power supply might be better. Currently only using 12v.

Regards

Dwane

[med.3012]

@Dwane


Hi,


Mazilli driver is only a demo, the driver can't support higher speed more than 1.6 MHZ ( actually this is the highest speed i got ), the insulator of ETBC that you are using is thick, this give a low capacitance, the idea here is to know the resonance frequency of ETBC so you are sure it will work fine with Mazilli driver , as stated i got 600 KHZ without load, after loading it the MOSFET run hot and the frequency changed to around 640 KHZ .

image 3 show the most important connections in this geometry , refer to image 2 , closed CD is where magnetism meet electricity , open CD ( slash ) is where we have an exact copy of the same disturbance created in CD ? THIS is how the voltage is transferred into magnetism which lead to real electric current gain.


if you want to go directly to HV experiment you still can try your ETBC with correct connections as i explained , if you want me to suggest something i will tell you ..!
please forget the concept CW and CCW ! although it's needed but we can do it with only one coil as primary , the conducting tube is there to secure the other wound direction since we got an opposite magnetic field ... remember Don Smith experiment with conducting tune + permanent magnet , because we are using electrons instead of magnet ( the electron is very light compared a permanent magnet ) it will act as stationary electrons ( this concept is needed to make the correct wire length as suggested by DS..)


imagine you have an ETBC; inside it you have a conducting tube ( SS tube can work in such high frequency), the primary coil is a large turn coil , this help too much to decrease the voltage created in the ETBC, this coil will catch both stationary electrons through the closed connection CD, the other connection CD ( slash) will take the displacement of these electrons since we have an alternating electromagnetic field and act as a natural path, this is how we excite the background energy and use it even when it return back to it's origin, obviously the connection CD is where we need to put the earth ground, L1 can be a multi stranded wire that excited using flyback transformer ( DC pulse ) .

i am not able to make a lots of experiments right now but this is my plan !


regards

[med.3012]

@Dwane


Hello and Hello everyone ,


i just was busy with work and my laptop , i switched my operating system from Linux Mint to Arch Linux Antergos ! really amazing operating system ! the power of freedom

i see you removed your last reply ! i agree with you the way i am using to describe my discoveries is confusing a little bit , but as you see i am changing the way to handle the ETBC, in part 1 of my PDF i was talking about disturbing the ambient back ground and trying to harvest the power from the ETBC related devices , the problem with that even if you disturb a huge amount of power it's not easy to take it since we are confined inside Lenz's law ..

after part 2 things appear clearly, Don Smith device is a very effective antenna , you can follow this video and compare what Don say with our work here :

https://youtu.be/Mnoy2D4wuf8

in the start of the video he stated he developed a way to capture the ambient background .., if you focus he also talked about lightning being an over unity mechanism ! he showed us exactly how he used the capacitive displacement to replicate power but it's not possible to know exactly what he used since it's an unknown area ..

now let me explain what we need to do , please watch the following drawing from pro K Meyl :

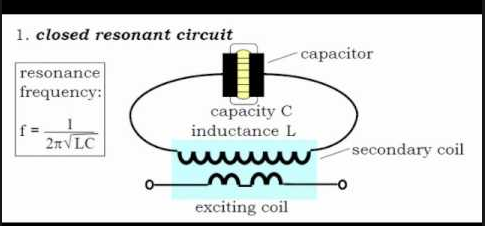

Prof Meyl explain Tesla wireless power transmitter as a simple parallel LC circuit , later he just separate the capacitor and change it by a conducting sphere so you have a Tesla wireless power transmitter , in our case it's very complicated but still simple, as you said an elegant solution to difficult problem !

we need to compact Tesla system but how we take the power ? Tesla has a transmitter and a receiver , if you receive what you sent you can't achieve a huge gain as Don Smith , the solution is still easy , we just need to disturb the ambient back and forth ( shake it ) , when we do that we just emulate Tesla system as we are sending and receiving ( both at the same time !!! now you could understand why DS talk about the right angle magnetic component, because we send and receive we should have an opposite magnetic field, this is why i suggest using a conducting tube to do that while the ETBC replicate the power through the capacitive displacement )

the ETBC is the most hard part and it's solved now, the Mazili driver will never light a 20 W bulb if there is no such phenomena , it's a kind of paradox because it appear you are taking power from a short circuited ETBC but it's not the case here.

in the same video of Don you can see he talk about optic , for example the old TV tube and how the electrons reflect , in the case of ETBC it's like a camera Obscura !!








regards

[Dwane]

Hi med,

Thank you for your reply.

I deleted the last post as I thought it might have been inappropriate to critise your helpful advice.

If I create SG between CD I get better response at light globe! I have not used SG because your Serial ETBC video says it is not needed in ETBC. There is other solution.

I am next trying spark gap in tube. The issue I see for SG is replacement with wear.

I do not seem to have Part 2. are you talking Mohamed.pdf part 2?

Rergards

Dwane
